Icom 510e

Icom 510e

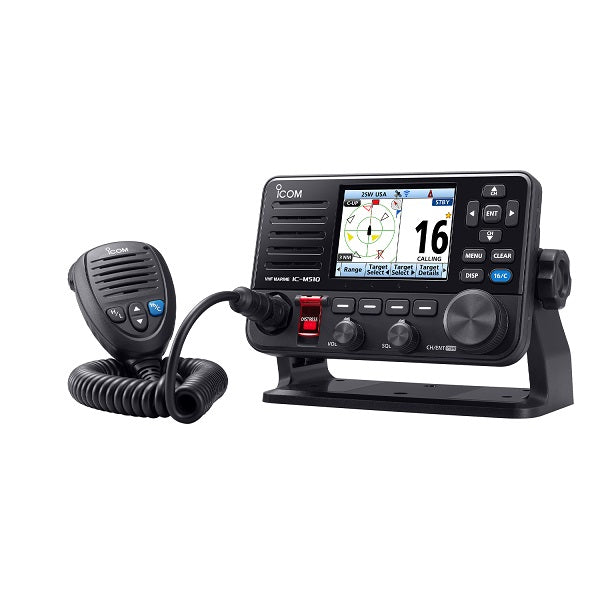

 Icom 510 series of marine radios is a Class-D DSC VHF Marine Radio with WLAN Function.

Popular with professional and recreational users alike including the New Zealand Coastguard.

Use the RS-M500 app (for iOS™/Android™) to remotely control the IC-M510 through WLAN. Up to three smart devices can be used as a wireless microphone or remote controller in substitute for the COMMANDMIC™. Intercom function between your smart device and the radio is also available.

Integrated AIS Receiver

With its integrated AIS receiver* or external NMEA sentence (third party AIS receiver, transponder), the IC-M510 can show real-time AIS vessel traffic information on the display. You can directly make an individual DSC call to selected AIS targets from the AIS screen.

* AIS receiver is not included depending on the transceiver version.

Wide Viewing Angle Color TFT LCD

The color TFT LCD provides nearly a 180-degree viewing angle. The wide display has high-resolution characters and function icons. The night mode screen ensures good readability in low light conditions.

New Sleek Design

The IC-M510 is slim (depth: 53.6 mm; 2.1 in) and easy to install in your boat. It’s all-new sleek design is suitable for either panel or trunnion mounting.

Provides Clear, Loud Audio

The IC-M510’s internal speaker enhances the received audio. The waterproof speaker provides superior sound quality with a wide frequency range for powerful, clear audio.

Other Features

  • Active Noise Canceling
  • NMEA 0183/HS connectivity
  • Integrated GNSS receiver (Selectable from either internal receiver or use optional UX-241 GNSS antenna)
  • IP68 advanced waterproofing (1 m depth of water for 60 minutes)
  • Automatic Foghorn function (CT-M500 required)
  • Voice Scrambler with optional UT-112A
  • AquaQuake™ prevents audio degradation from a water-logged speaker
  • Supplied speaker-microphone, HM-205RB can be connected to either front or rear panel to meet to user's requirement.
  • External speaker connection
  • Controlled with COMMANDMIC™ HM-195GB/GW
  • Supports 4-digit channels
